Programmable Low-Access Examination Table
ADA compliant 18.5” low-access height and a 700 pound patient load capacity are just two distinguishing features of the Programmable 4550. The power controlled height and back allows adjustment of table for best patient access including flat back/low 18.5” and chair position. Table also features a hand control with 3 programmable memory positions, a pelvic tilt, field reversible side drawer, Stainless Steel footend drawer, multi-position stirrups, 100% seamless top with padded pull out leg extension which moves independent of the Stainless Steel irrigation basin, and the ENOCHS 4-Year Warranty.
The 4450 may be ordered with add-on options of hospital grade dual electrical receptacles, an instrument warmer and/or a standard foot control.

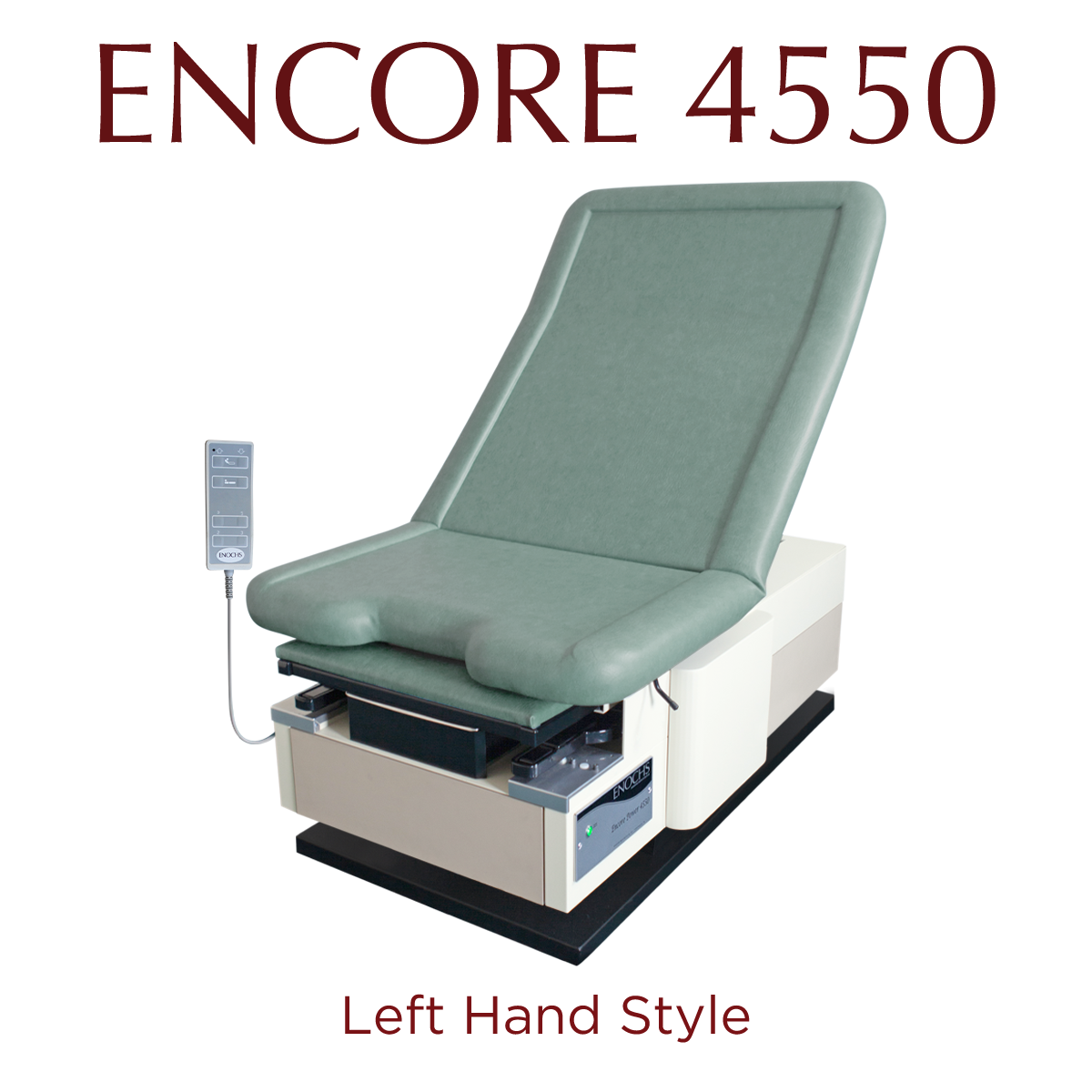

ENCORE 4550
TABLE FEATURES
4-YEAR Warranty
Patient Load: 700 lbs.
Programmable Hand Control with 3 memory positions
Low access: 18.5” Maximum height: 38”
Power Back adjusts from horizontal to 80°
Easy to clean 100% Seamless Vacuum Formed Top with additional padding on edges for patient comfort
11° Pelvic Tilt
Field Reversible Side Drawer
Stainless Steel Footend Drawer
Stainless Steel Irrigation Basin operates independent of Leg Extension
Multi-position Positive Lock Stirrups with length and lateral adjustment
Overload Protection: Circuit Breakers - NO FUSES
Fully Welded All Steel Base Construction - NO PLASTIC
Table Ships Complete - NO ASSEMBLY REQUIRED
Classified by UL to ANSI/AAMI ES60601-1 (2005) + AMD 1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014)
ENCORE 4550 ADD-ON OPTIONS
Electrical Receptacles* | Instrument Warmer** | Foot Control | |
---|---|---|---|
-01 |
• |
• |
|
-02 |
• |
||
-03 |
• |
||
-04 |
• |
• |
• |
-05 |
• |
• |
|
-06 |
• |
• |
|
-07 |
• |
||
*Hospital grade, dual receptacles with easy access dedicated circuit breaker
Duty Cycle: Continuous operation Total Load: 3.9 amps Rating: 115V 60Hz |
**45 Watts, ON/OFF switch with integrated circuit breaker Duty Cycle: Continuous operation |
“Hands Free”, easy to operate, SELV, non-detachable |
